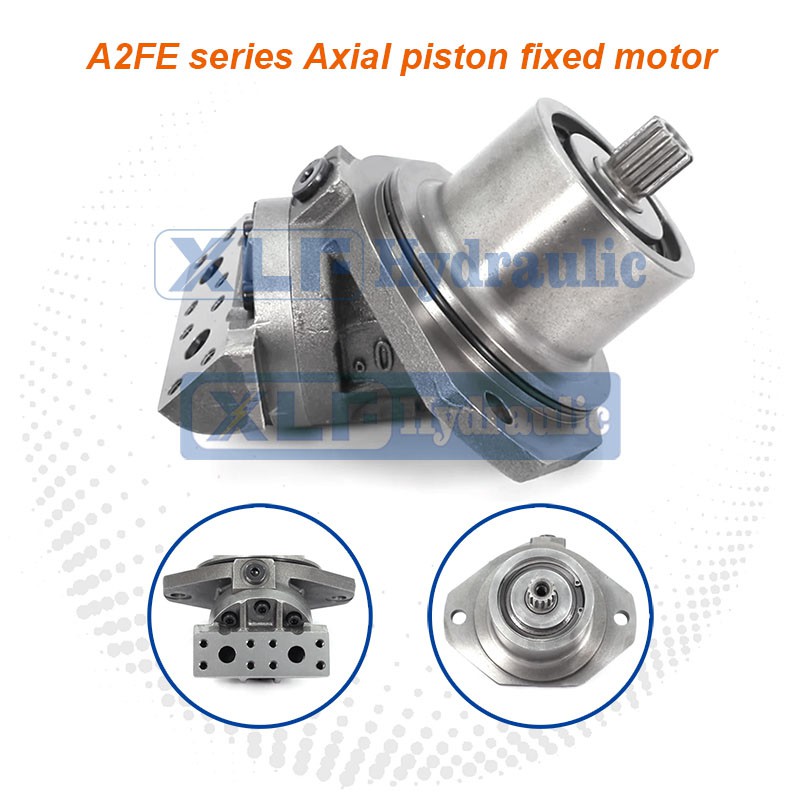

Rexroth A2FE Series 6x 5 Piston Hydraulic Motor for Flat Shovel
Size 28 … 355
Nominal pressure up to 400 bar
Maximum pressure up 450 bar
Open and closed circuits
High pressure motor for integration in mechanical gearboxes
Open and closed circuits
Product technical data
XLF-A2FE Axial Piston Fixed Pump Features
1. Fully interchangeable with the original brand
2. Very competitive price
3. Low noise, high efficiency, high reliability, long service life
4. Small size, high power density
5. Excellent oil absorption properties.
6. 1 year warranty
7. For engineering equipment, Marine and boating and industrial equipment, etc.
8. For axial piston pump with open loop.
9. Continuous working pressure up to 280 bar, instantaneous maximum working pressure up to 450 bar.
10. Flow proportional to drive speed and displacement and can be achieved by adjusting the variable lock Angle
11. There are constant pressure, constant power pressure, constant voltage flow and other control methods, as well as the reaction rate control
12. Drive shaft can withstand axial and radial loads
13. Sae and iso mounting flange
14. For the structure of the axis of passage and for a multi-loop system
15. Start at any time under pressure.
The main hydraulic piston pumps and hydraulic motor in our factory . We can provide a pretty good replacement for these original series products, if you are looking for these models, we are just the right supplier you deserve cooperation for a long time.

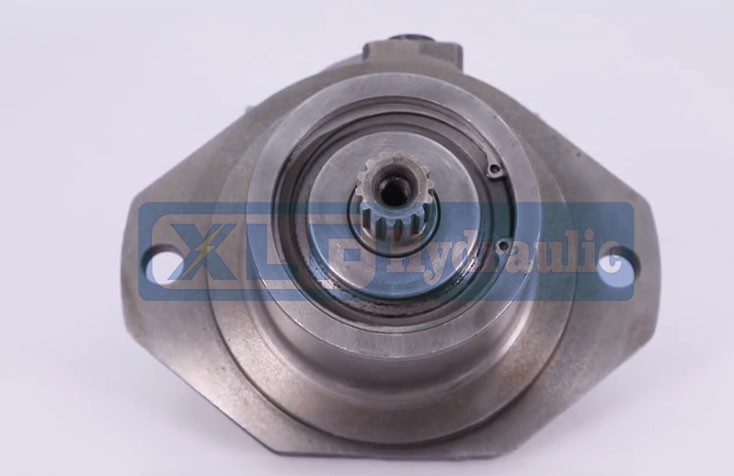

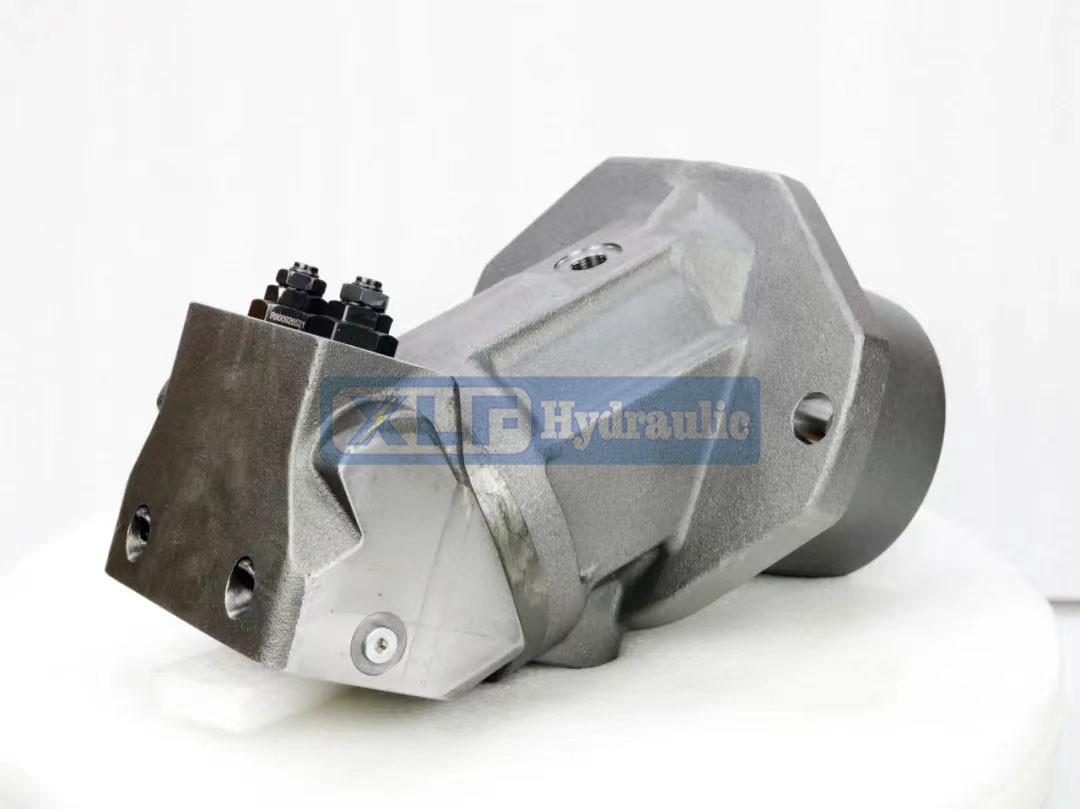

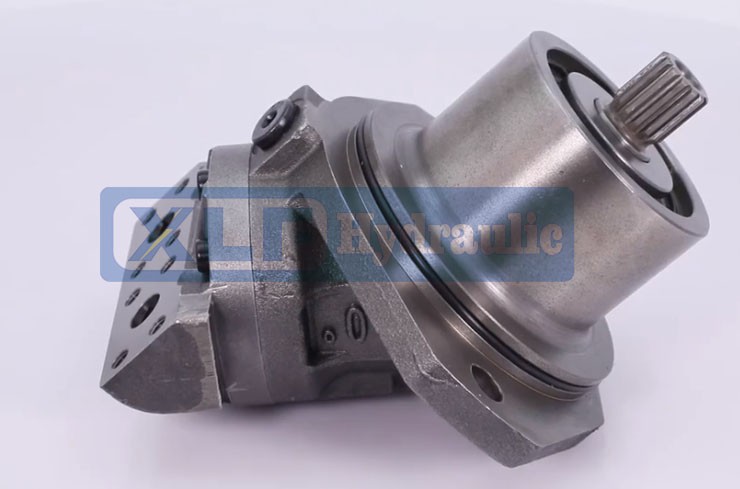

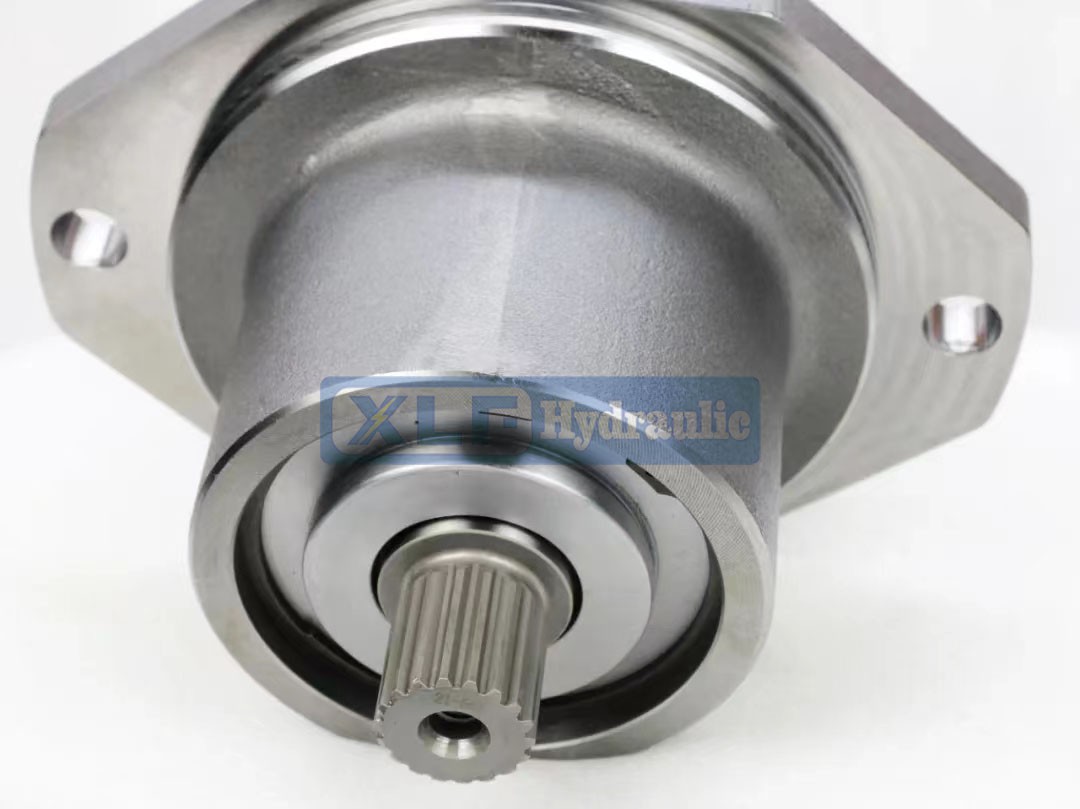

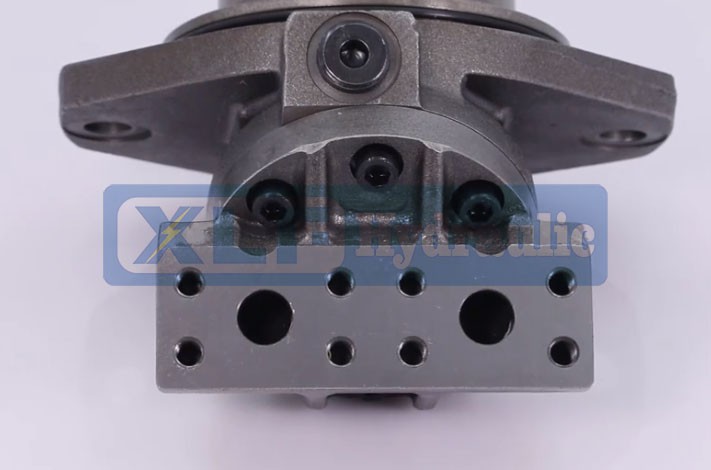

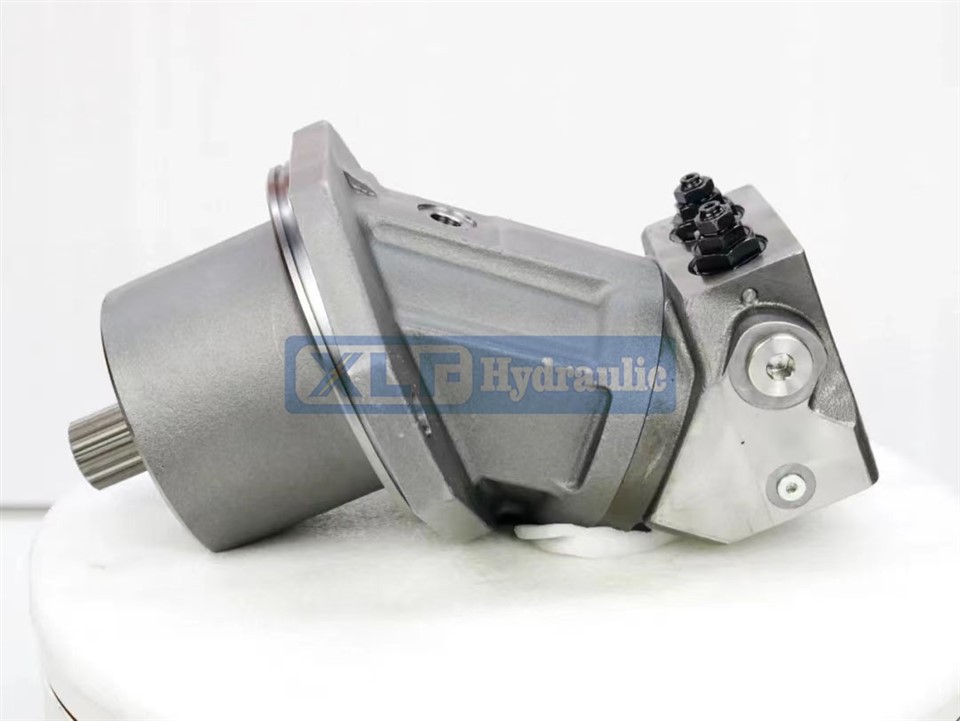

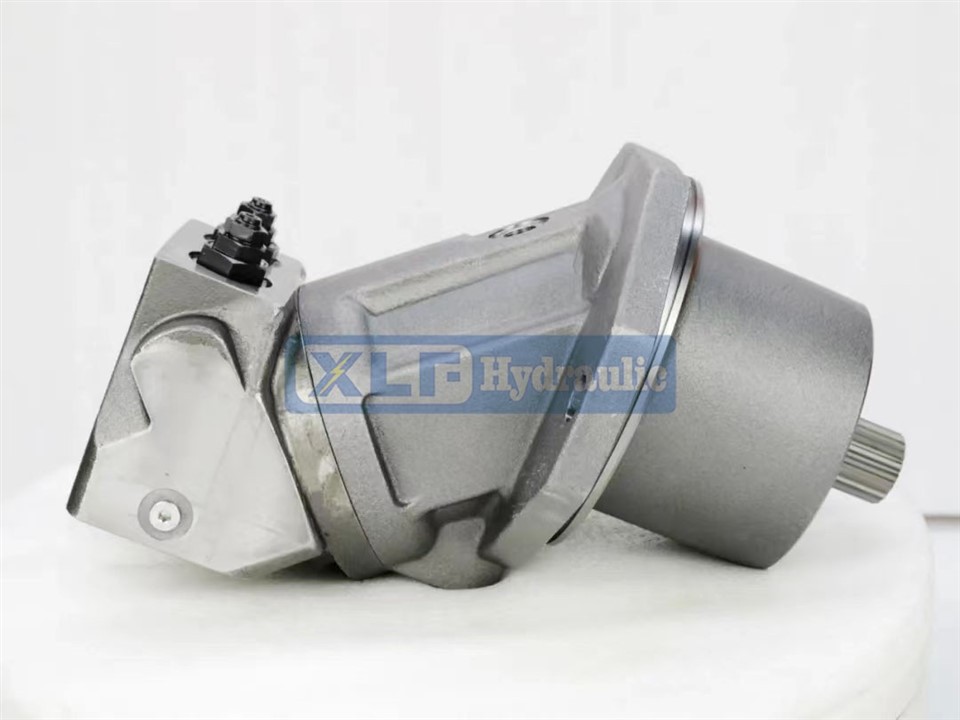

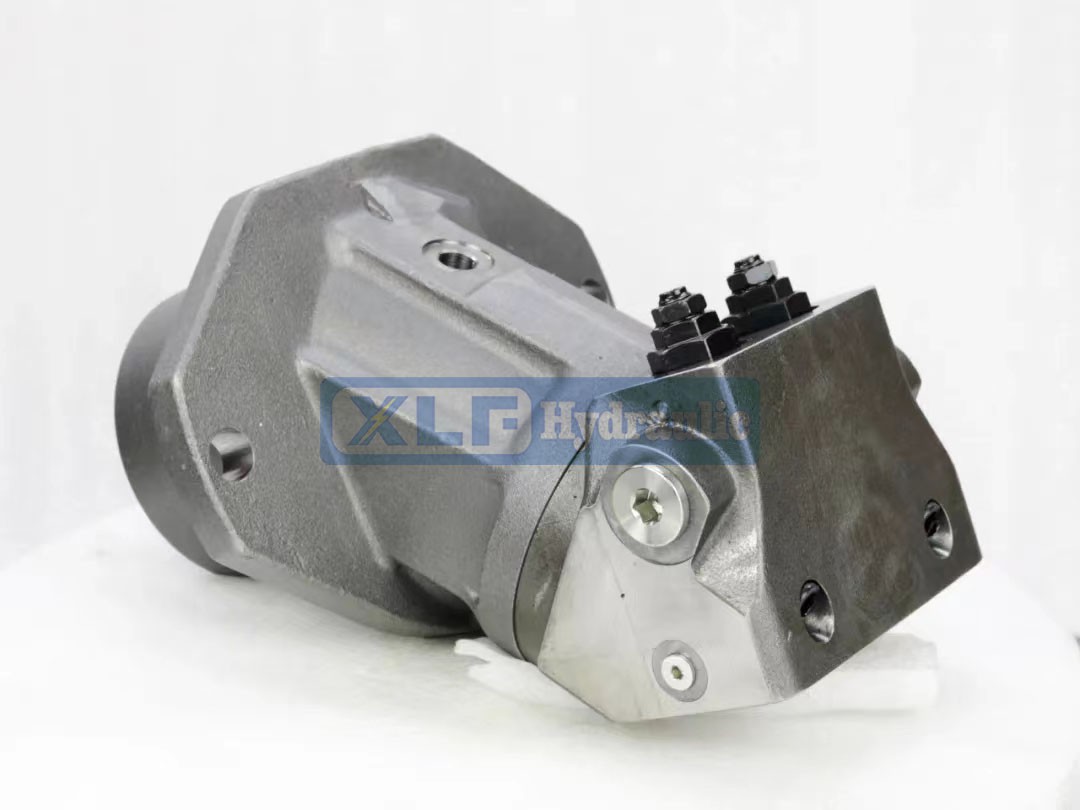

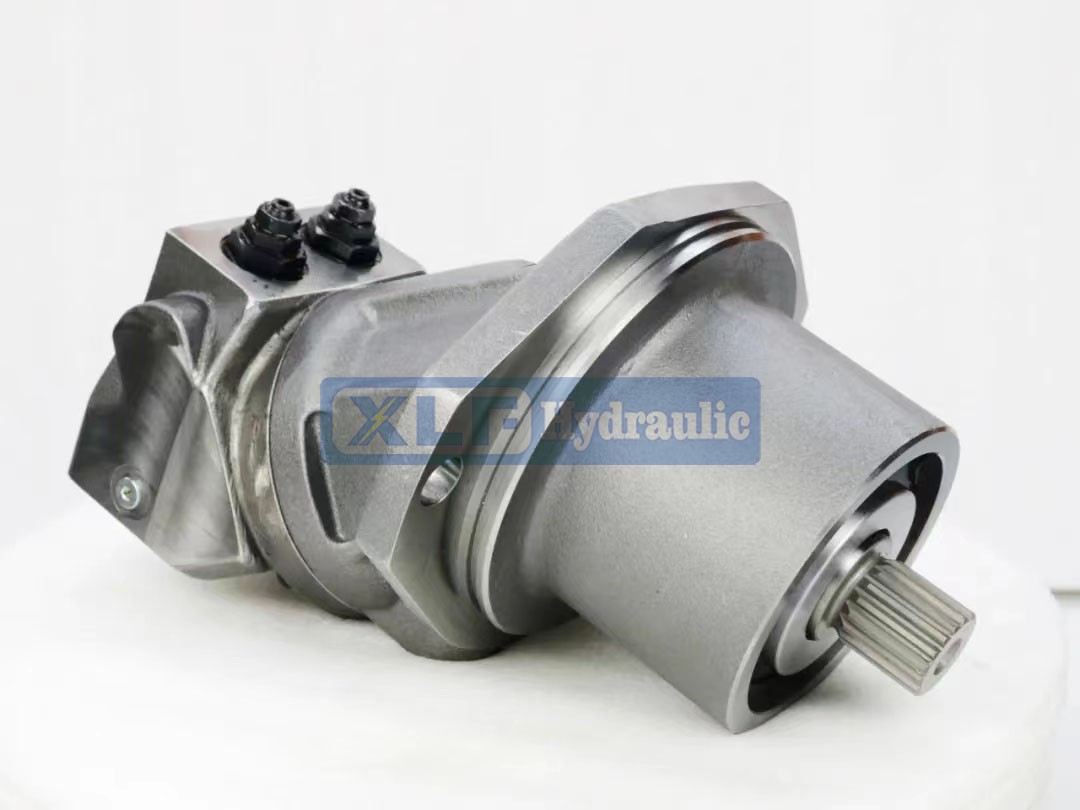

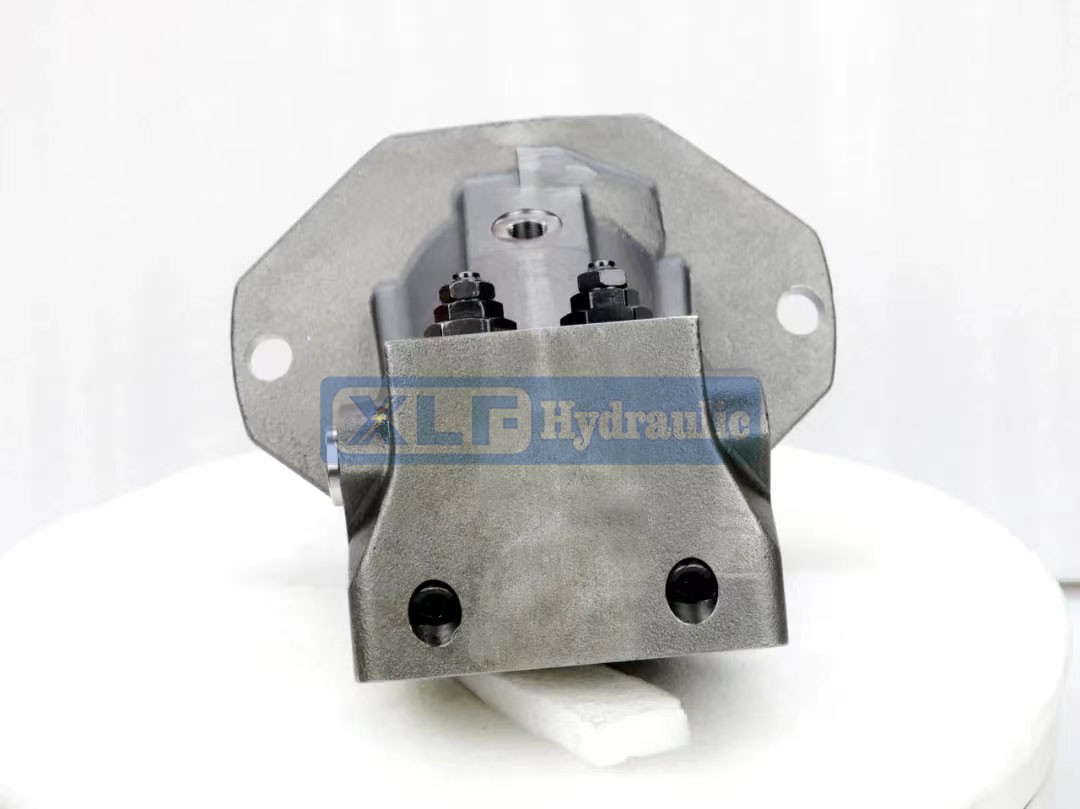

XLF-A2FE Axial Piston Fixed Pump Product detail picture
XLF-A2FE Axial Piston Fixed Pump Technical data
| Technical data | |||||||||||
| Table of values | |||||||||||
| Size | 28 | 32 | 107 | 125 | 160 | 180 | 250 | 355 | |||
| Displacement geometric, per revolution |
Vg cm³ | 28.1 | 32 | 106.7 | 125 | 160.4 | 180 | 250 | 355 | ||
| Nominal pressure Pnom bar | 400 | 400 | 400 | 400 | 400 | 400 | 350 | 350 | |||
| Maximum pressure Pmax bar | 450 | 450 | 450 | 450 | 450 | 450 | 400 | 400 | |||
| Nnom rpm | 6300 | 6300 | 4000 | 4000 | 3600 | 3600 | 2700 | 2240 | |||
| Maximum speed 1) ∩max 2) rpm | 6900 | 6900 | 4400 | 4400 | 4000 | 4000 | |||||
| Inlet flow 3 at nnom qv l/min | 177 | 202 | 427 | 500 | 577 | 648 | 675 | 795 | |||
| Torque 4) at pnom M Nm | 179 | 204 | 679 | 796 | 1021 | 1146 | 1393 | 1978 | |||
| Rotary stiffness C | kNm/ rad |
2.93 | 3.12 | 11.2 | 11.9 | 17.4 | 18.2 | 73.1 | 96.1 | ||
| Moment rotary |
of inertia for group |
Jrw kg·m² | 0.0012 | 0.0012 | 0.0116 | 0.0116 | 0.022 | 0.022 | 0.061 | 0.102 | |
| Maximum angular acceleration |
a rad/s⊃2; | 6500 | 6500 | 4500 | 4500 | 3500 | 3500 | 10000 | 8300 | ||
| Case volume V L | 0.2 | 0.2 | 0.8 | 0.8 | 1.1 | 1.1 | 2.5 | 3.5 | |||
| Weight (approx.) m kg | 10.5 | 10.5 | 34 | 36 | 47 | 48 | 82 | 110 | |||
| 1)These values are valid at | |||||||||||
| -for the optimum viscosity range from Vopt =36 to 16 mm²/s -with hydraulic fluid based on mineral oils |
|||||||||||
| 2)Intermittent maximum speed:overspeed for unload and overhauling processest,t<5 s and △p<150 bar 3)Restriction of input flow with counterbalance valve |
|||||||||||
| 4)Torque without radial force,with radial force see table "Permissible radial and axial forces of the driveshafts" | |||||||||||
| Note | |||||||||||
| ? The values in the table are theoretical values,without consideration of efficiencies and tolerances.The values are rounded |
of the axial piston unit.Other permissible limit values, | ||||||||||
| such as speed variation,reduced angular acceleration | |||||||||||
| as a function of the frequency and the permissible | |||||||||||
| Exceeding the maximum or falling below the minimum permissible values can lead to a loss of function,a reduction in operational service life or total destruction |
angular acceleration at start (lower than the maxi- | ||||||||||
| mum angular acceleration)can be found in data sheet | |||||||||||
| 90261. | |||||||||||
XLF-A2FE Applicable model
|
R902198246 AA2FM10/61W-VPC53-S R902205896 AA2FM10/61W-VPC530 R902235335 AA2FM10/61W-VPC530 R902198357 AA2FM10/61W-VPC530-S R902251587 AA2FM10/61W-VPC530-S R902241987 AA2FM10/61W-VPCXXX-S R902193956 AA2FM10/61W-VSC530 R902182370 AA2FM107/61R-VXDXX0-S R902239940 AA2FM107/61R-VXDXX0F-S R902205977 AA2FM107/61W-VBD527 R902249877 AA2FM107/61W-VSD10X-S R902249835 AA2FM107/61W-VSD188 R902137823 AA2FM107/61W-VSD510 R902138117 AA2FM107/61W-VSD510 R902137843 AA2FM107/61W-VSD510 R902211779 AA2FM107/61W-VSD510 R902137640 AA2FM107/61W-VSD510 R902138465 AA2FM107/61W-VSD510 R902137985 AA2FM107/61W-VSD520 R902196023 AA2FM107/61W-VSD520 R902137943 AA2FM107/61W-VSD520 R902161079 AA2FM107/61W-VSD520 |
R902193024 AA2FM107/61W-VSD520 R902137984 AA2FM107/61W-VSD520 R902137980 AA2FM107/61W-VSD520 R902191834 AA2FM107/61W-VSD520 R902215017 AA2FM107/61W-VSD520 R902233087 AA2FM107/61W-VSD520F R902249822 AA2FM107/61W-VSD527 R902205729 AA2FM107/61W-VSD527 R902249635 AA2FM107/61W-VSD527 R902249693 AA2FM107/61W-VSD527D R902028680 AA2FM107/61W-VSD600 R902028677 AA2FM107/61W-VSDXX0-S R902077007 AA2FM107/61W-VSDXX6F-S R992000213 AA2FM107/61W-VSDXX6F-S R902077005 AA2FM107/61W-VSDXX6F-S R902250951 AA2FM107/61W-VSDXXX-S R902138180 AA2FM107/61W-VSDXXX-S R992000554 AA2FM107/61W-VSDXXX-S R902245819 AA2FM107/61W-VUD010-S R902268506 AA2FM107/61W-VUD527 R902247082 AA2FM107/61W-VUD527J R902138106 AA2FM107/61W-VUD691-S |
R902170073 AA2FM107/61W-VUDXXX-S R902138092 AA2FM107/61W-VXD510-S R902182368 AA2FM107/61W-VXDXX0-S R902249929 AA2FM12/61L-VPC66A R902211618 AA2FM12/61W-PPC530-S R902197816 AA2FM12/61W-VBC530 R902198168 AA2FM12/61W-VBC530 R902193092 AA2FM12/61W-VBC530 R902275596 AA2FM12/61W-VBC530 R902193415 AA2FM12/61W-VPC53 R992001713 AA2FM12/61W-VPC53 R902197508 AA2FM12/61W-VPC530 R902193119 AA2FM12/61W-VSC530 R909610112 AA2FM12/61W-VSC530 R902232980 AA2FM12/61W-VSC530 R902232562 AA2FM12/61W-VSC530 R902261304 AA2FM12/61W-VSC530-S R902251984 AA2FM12/61W-VSC530-S R902253709 AA2FM12/61W-VSC530-Y R902082192 AA2FM125/61L-VSDXX0-S R902227689 AA2FM125/61R-VSDXX0D-S R902134620 AA2FM125/61R-VXDXX0-S |
R902202156 AA2FM125/61W-VBD520 R902138113 AA2FM125/61W-VBD527 R902138479 AA2FM125/61W-VBD527D R902160039 AA2FM125/61W-VBD527H R902248403 AA2FM125/61W-VBD527H R902161171 AA2FM125/61W-VSD181 R902197820 AA2FM125/61W-VSD181-S R902233382 AA2FM125/61W-VSD510 R902153922 AA2FM125/61W-VSD510 R902197537 AA2FM125/61W-VSD510 R902161062 AA2FM125/61W-VSD510 R902138182 AA2FM125/61W-VSD510 R902137744 AA2FM125/61W-VSD510 R902137696 AA2FM125/61W-VSD510 R902137732 AA2FM125/61W-VSD520 R902160047 AA2FM125/61W-VSD520 R902198248 AA2FM125/61W-VSD520 R902197536 AA2FM125/61W-VSD520 R902161116 AA2FM125/61W-VSD520 R902138467 AA2FM125/61W-VSD520 R902161080 AA2FM125/61W-VSD520 R902137733 AA2FM125/61W-VSD520 |
|
R902203205 AA2FM125/61W-VSD520 R902203975 AA2FM125/61W-VSD520 R902268507 AA2FM125/61W-VSD527 R902160987 AA2FM125/61W-VSD527 R902138093 AA2FM125/61W-VSD527 R902138111 AA2FM125/61W-VSD527 R902137976 AA2FM125/61W-VSD527 R902232765 AA2FM125/61W-VSD527D R902249580 AA2FM125/61W-VSD527D R902161354 AA2FM125/61W-VSD600 R902138464 AA2FM125/61W-VSD600 R902241759 AA2FM125/61W-VSD600 R902028681 AA2FM125/61W-VSD606 R902078990 AA2FM125/61W-VSDXX6F-S R902138179 AA2FM125/61W-VSDXXX-S R992000553 AA2FM125/61W-VSDXXX-S R902250950 AA2FM125/61W-VSDXXX-S R902134619 AA2FM125/61W-VXDXX0-S R902232856 AA2FM16/61L-VBCXXBV-S R902255654 AA2FM16/61R-VBC66B-S R902197821 AA2FM16/61W-VBC530 R902198182 AA2FM16/61W-VBC530-S |
R902161437 AA2FM16/61W-VPC530-S R902197791 AA2FM16/61W-VSC530 R902197826 AA2FM16/61W-VSC530 R902197541 AA2FM16/61W-VSC530 R902223343 AA2FM16/61W-VSC530 R902197892 AA2FM16/61W-VSC530 R902255772 AA2FM16/61W-VSC530 R902222226 AA2FM160/61W-PSD527 R902191997 AA2FM160/61W-VBD510 R902163802 AA2FM160/61W-VSD181-S R902249676 AA2FM160/61W-VSD191VJ R902193396 AA2FM160/61W-VSD510 R902161474 AA2FM160/61W-VSD510 R902197934 AA2FM160/61W-VSD510 R902203220 AA2FM160/61W-VSD520 R902197571 AA2FM160/61W-VSD520 R902197567 AA2FM160/61W-VSD520 R902193516 AA2FM160/61W-VSD520 R902205706 AA2FM160/61W-VSD520H R902253662 AA2FM160/61W-VSD520V R902198015 AA2FM160/61W-VSD527 R902161018 AA2FM160/61W-VSD527 |
R902092919 AA2FM160/61W-VSD527 R902208794 AA2FM160/61W-VSD527 R902209776 AA2FM160/61W-VSD527 R902160978 AA2FM160/61W-VSD527F R902232647 AA2FM160/61W-VSD527H R902139659 AA2FM160/61W-VSDXX0D-S R902194222 AA2FM160/61W-VSDXX0FJ-S R902038813 AA2FM160/61W-VSDXX0J-S R902222225 AA2FM180/61W-PSD527 R902207031 AA2FM180/61W-VBD510 R902197564 AA2FM180/61W-VBD520 R902193797 AA2FM180/61W-VBD527 R902028684 AA2FM180/61W-VSD100-S R902251900 AA2FM180/61W-VSD100-S R902193202 AA2FM180/61W-VSD100-S R902198276 AA2FM180/61W-VSD181-S R902161448 AA2FM180/61W-VSD181-S R902193869 AA2FM180/61W-VSD510 R902193316 AA2FM180/61W-VSD510 R902198018 AA2FM180/61W-VSD510 R902193712 AA2FM180/61W-VSD520 R902198019 AA2FM180/61W-VSD520 |
R902245696 AA2FM180/61W-VSD520 R902202257 AA2FM180/61W-VSD520 R902193890 AA2FM180/61W-VSD527 R902197822 AA2FM180/61W-VSD527 R902198210 AA2FM180/61W-VSD527 R902047244 AA2FM180/61W-VSDXX0FJ-S R902028864 AA2FM180/61W-VSDXX0J-S R986008363 AA2FM180/61W-VSDXX0J-S REMAN R902161050 AA2FM23/61W-VBD510 R902232598 AA2FM23/61W-VBD520HJ R902201965 AA2FM23/61W-VSD027F R902245996 AA2FM23/61W-VSD027U R902197891 AA2FM23/61W-VSD510 R902231165 AA2FM23/61W-VSD510 R902193873 AA2FM23/61W-VSD510 R902215019 AA2FM23/61W-VSD510 R902232783 AA2FM23/61W-VSD520 R902194294 AA2FM23/61W-VSD520 R902191962 AA2FM23/61W-VSD520 R902232612 AA2FM23/61W-VSD520 R902217545 AA2FM23/61W-VSD520 R992000050 AA2FM23/61W-VSD526 |
|
R902193931 AA2FM23/61W-VSD526 R902211681 AA2FM23/61W-VSD530 R902202130 AA2FM23/61W-VSD530 R902163515 AA2FM23/61W-VSD530FJ R902193069 AA2FM23/61W-VSD540 R902222103 AA2FM28/61W-VBD510 R902232703 AA2FM28/61W-VBD527 R902193532 AA2FM28/61W-VBD530 R902161445 AA2FM28/61W-VBD540 R902198240 AA2FM28/61W-VSD520 R902201914 AA2FM28/61W-VSD527 R902193517 AA2FM28/61W-VSD530 R902193584 AA2FM28/61W-VSD530 R902197566 AA2FM28/61W-VSD540 R902207691 AA2FM28/61W-VSD540J R902203982 AA2FM28/61W-VSD540J R902196639 AA2FM32/61W-VBD520 R902205807 AA2FM32/61W-VBD530 R902198241 AA2FM32/61W-VBD530 R902249578 AA2FM32/61W-VBD540 R902193710 AA2FM32/61W-VBD540 R902198472 AA2FM32/61W-VSD027 |
R902245999 AA2FM32/61W-VSD027U R902161260 AA2FM32/61W-VSD106-S R902198132 AA2FM32/61W-VSD510 R902193545 AA2FM32/61W-VSD510 R902155896 AA2FM32/61W-VSD510 R902223311 AA2FM32/61W-VSD510 R902270608 AA2FM32/61W-VSD510 R902202055 AA2FM32/61W-VSD520 R902193871 AA2FM32/61W-VSD520 R902197538 AA2FM32/61W-VSD520 R902198273 AA2FM32/61W-VSD520 R902193928 AA2FM32/61W-VSD526 R992000051 AA2FM32/61W-VSD526 R992000647 AA2FM32/61W-VSD526 R902198031 AA2FM32/61W-VSD530 R902201829 AA2FM32/61W-VSD530 R902201952 AA2FM32/61W-VSD530 R902203282 AA2FM32/61W-VSD530FJ R902163852 AA2FM32/61W-VSD536 R902193933 AA2FM32/61W-VSD537 R902198049 AA2FM32/61W-VSD537-S R902198042 AA2FM32/61W-VSD540 |
R902203042 AA2FM32/61W-VSD540 R902203467 AA2FM32/61W-VSD540 R902198014 AA2FM32/61W-VSD540-S R902186412 AA2FM32/61W-VSD540FJ R902137737 AA2FM45/61W-VPD510 R902193533 AA2FM45/61W-VPD510 R902249639 AA2FM45/61W-VPD510J-S R902198012 AA2FM45/61W-VPD520 R902193115 AA2FM45/61W-VPD520 R902160988 AA2FM45/61W-VPD520 R902191694 AA2FM45/61W-VPD520D R902203977 AA2FM45/61W-VPD527 R902205858 AA2FM45/61W-VPD527H R902161479 AA2FM45/61W-VSD027 R902050800 AA2FM45/61W-VSD027-S R992000315 AA2FM45/61W-VSD027D-ES R902197837 AA2FM45/61W-VSD027D-S R992000653 AA2FM45/61W-VSD027D-S R902197983 AA2FM45/61W-VSD027F R902139890 AA2FM45/61W-VSD181-S R902232683 AA2FM45/61W-VSD188H R902197788 AA2FM45/61W-VSD192J-S |
R902215470 AA2FM45/61W-VSD510 R902208909 AA2FM45/61W-VSD510 R902193514 AA2FM45/61W-VSD510 R902235411 AA2FM45/61W-VSD510 R902193978 AA2FM45/61W-VSD510 R902261180 AA2FM45/61W-VSD510 R902137551 AA2FM45/61W-VSD510 R902208647 AA2FM45/61W-VSD510J-S R902198011 AA2FM45/61W-VSD520 R902196957 AA2FM45/61W-VSD520 R902193887 AA2FM45/61W-VSD520 R902233381 AA2FM45/61W-VSD520 R902232650 AA2FM45/61W-VSD520 R902253810 AA2FM45/61W-VSD520 R902222469 AA2FM45/61W-VSD520 R902198267 AA2FM45/61W-VSD520 R902202179 AA2FM45/61W-VSD527 R902197565 AA2FM45/61W-VSD527 R902198013 AA2FM45/61W-VSD527 R902232764 AA2FM45/61W-VSD527D R902249581 AA2FM45/61W-VSD527D R902205554 AA2FM45/61W-VSD527J |
|
R902205927 AA2FM45/61W-VSD527J R902205876 AA2FM45/61W-VSD527J R902160543 AA2FM56/61W-VBD510 R902160504 AA2FM56/61W-VBD520 R902160049 AA2FM56/61W-VBD527 R902268673 AA2FM56/61W-VBD527U R902035440 AA2FM56/61W-VSD027-S R902274412 AA2FM56/61W-VSD027D-S R902237420 AA2FM56/61W-VSD027F-S R902161353 AA2FM56/61W-VSD510 R902160734 AA2FM56/61W-VSD510 R902170048 AA2FM56/61W-VSD510 R902161377 AA2FM56/61W-VSD510 R902217655 AA2FM56/61W-VSD510 R902193013 AA2FM56/61W-VSD510 R902251806 AA2FM56/61W-VSD510V R902253674 AA2FM56/61W-VSD520 R902160749 AA2FM56/61W-VSD520 R902193184 AA2FM56/61W-VSD520 R902153805 AA2FM56/61W-VSD520 R902160057 AA2FM56/61W-VSD520 R902161210 AA2FM56/61W-VSD520 |
R902153520 AA2FM56/61W-VSD527 R902232754 AA2FM56/61W-VSD527 R902161048 AA2FM56/61W-VSD527F R902206715 AA2FM56/61W-VSD527F R992001025 AA2FM56/61W-VSD52X-S R902250521 AA2FM56/61W-VTD010 R902161283 AA2FM56/61W-VTD010-S R902155977 AA2FM56/61W-VTD027-S R902196212 AA2FM56/61W-VTD027-S R902243075 AA2FM56/61W-VTD027-S R902155961 AA2FM56/61W-VTD027-S R902220850 AA2FM56/61W-VTD027-S R902253564 AA2FM56/61W-VTD027U-S R902160013 AA2FM56/61W-VTD029U-S R902193214 AA2FM56/61W-VTD510 R902271107 AA2FM56/61W-VTD510J R902160002 AA2FM56/61W-VTX027F-S R902237271 AA2FM63/61R-VTD48BU-S R902232600 AA2FM63/61W-VAD510 R902160743 AA2FM63/61W-VBD510 R902232713 AA2FM63/61W-VBD510 R902203851 AA2FM63/61W-VBD520 |
R902206513 AA2FM63/61W-VBD527 R902249606 AA2FM63/61W-VBD527U R902035441 AA2FM63/61W-VSD027-S R902193291 AA2FM63/61W-VSD027-S R902193826 AA2FM63/61W-VSD027F-S R902245997 AA2FM63/61W-VSD027U-S R902196022 AA2FM63/61W-VSD510 R902208971 AA2FM63/61W-VSD510 R902206721 AA2FM63/61W-VSD510 R902193025 AA2FM63/61W-VSD510 R902161224 AA2FM63/61W-VSD510 R992000053 AA2FM63/61W-VSD510 R902229060 AA2FM63/61W-VSD510 R902193185 AA2FM63/61W-VSD510 R902160540 AA2FM63/61W-VSD510 R902161211 AA2FM63/61W-VSD510 R902198016 AA2FM63/61W-VSD510 R902227912 AA2FM63/61W-VSD510H R902232648 AA2FM63/61W-VSD510H-Y R902160654 AA2FM63/61W-VSD520 R902161132 AA2FM63/61W-VSD520 R902161499 AA2FM63/61W-VSD520 |
R902182282 AA2FM63/61W-VSD520 R902161209 AA2FM63/61W-VSD520 R902160055 AA2FM63/61W-VSD520 R902253822 AA2FM63/61W-VSD520-S R902182347 AA2FM63/61W-VSD520D R902243443 AA2FM63/61W-VSD520V R902161086 AA2FM63/61W-VSD526 R992000611 AA2FM63/61W-VSD526 R992000052 AA2FM63/61W-VSD526 R902160056 AA2FM63/61W-VSD527 R902193289 AA2FM63/61W-VSD527 R902160048 AA2FM63/61W-VSD527 R902205946 AA2FM63/61W-VSD527 R902161119 AA2FM63/61W-VSD527 R902217528 AA2FM63/61W-VSD527F R902043849 AA2FM63/61W-VSD527I R902207264 AA2FM63/61W-VTD010-Y R902031782 AA2FM63/61W-VTD016F R902220632 AA2FM63/61W-VTD027 R902220815 AA2FM63/61W-VTD027 R902220869 AA2FM63/61W-VTD027-S R902155901 AA2FM63/61W-VTD027-S |
|
R902155960 AA2FM63/61W-VTD027-S R902162259 AA2FM63/61W-VTD027-S R902253790 AA2FM63/61W-VTD027H-S R902274430 AA2FM63/61W-VTD027U R902257795 AA2FM63/61W-VTD027V-S R902161253 AA2FM63/61W-VTD100 R902160046 AA2FM63/61W-VTD510 R902232509 AA2FM63/61W-VTD527 R902249531 AA2FM63/61W-VTD527V R902160518 AA2FM63/61W-VTDXX7-S R902161332 AA2FM63/61W-VTDXX7-S R992000009 AA2FM63/61W-VTDXX7-S R902161219 AA2FM63/61W-VTDXX7-S R902161378 AA2FM63/61W-VTDXX7F-S R902217972 AA2FM63/61W-VTDXX7F-S R902193392 AA2FM63/61W-VTDXX7F-S R902249719 AA2FM80/61W-VBD510 R902245895 AA2FM80/61W-VBDN520 R902205917 AA2FM80/61W-VQDN188H-Y R902193023 AA2FM80/61W-VQDN510 R902170049 AA2FM80/61W-VQDN510 R902161041 AA2FM80/61W-VQDN510 |
R902137571 AA2FM80/61W-VQDN510 R902160962 AA2FM80/61W-VQDN510 R902233197 AA2FM80/61W-VQDN510 R902160878 AA2FM80/61W-VQDN510 R902151731 AA2FM80/61W-VQDN510 R902137512 AA2FM80/61W-VQDN520 R902211755 AA2FM80/61W-VQDN520-S R902137507 AA2FM80/61W-VQDN520-S R902261139 AA2FM80/61W-VQDN520-S R902182329 AA2FM80/61W-VQDN520D R902196026 AA2FM80/61W-VQDN527 R902161324 AA2FM80/61W-VQDN527 R902232837 AA2FM80/61W-VQDN691J-S R902232640 AA2FM80/61W-VQDN691J-S R902137827 AA2FM80/61W-VSD510 R902137826 AA2FM80/61W-VSD510 R902137882 AA2FM80/61W-VSD520 R902233242 AA2FM80/61W-VUD527 R902207263 AA2FM80/61W-VUDN010-S R902245048 AA2FM80/61W-VUDN020-S R902220633 AA2FM80/61W-VUDN027 R902250627 AA2FM80/61W-VUDN027-S |
R902250655 AA2FM80/61W-VUDN027-S R902155549 AA2FM80/61W-VUDN027-S R902196211 AA2FM80/61W-VUDN027-S R902161278 AA2FM80/61W-VUDN027-S R902253872 AA2FM80/61W-VUDN027-S R902268544 AA2FM80/61W-VUDN027-S R902160016 AA2FM80/61W-VUDN027-S R902253506 AA2FM80/61W-VUDN027-S R902161056 AA2FM80/61W-VUDN027-S R902155809 AA2FM80/61W-VUDN027-S R902138149 AA2FM80/61W-VUDN027U-S R902231282 AA2FM80/61W-VUDN027U-S R902271398 AA2FM80/61W-VUDN027U-S R902160012 AA2FM80/61W-VUDN029U-S R902160018 AA2FM80/61W-VUDN029U-S R902137930 AA2FM80/61W-VUDN510 R902138091 AA2FM80/61W-VUDN510 R902137578 AA2FM80/61W-VUDN520 R902137579 AA2FM80/61W-VUDN520 R902028672 AA2FM80/61W-VUDN526-S R902205826 AA2FM80/61W-VUDN527 R902191681 AA2FM80/61W-VUDN527 |
R902233056 AA2FM80/61W-VUDN527 R902160040 AA2FM80/61W-VUDN527D R902205551 AA2FM80/61W-VUDN527V R902138105 AA2FM80/61W-VUDN52X-S R902031784 AA2FM80/61W-VUDNXX6F-S R902031783 AA2FM80/61W-VUDNXX6F-S R902232742 AA2FM80/61W-VUDNXX6V-S R902151565 AA2FM80/61W-VUX027 R902151547 AA2FM80/61W-VUX027 R902138010 AA2FM80/61W-VUX027F-S R902138099 AA2FM80/61W-VXD510-S R902197893 AA2FM80/61W-VXD510-S R902255988 AA2FM80/61W-VXDN029-S R902203435 AA2FM80/61W-VXDN029-S R902249601 AA2FM80/61W-VXDN510-S R902232601 AA2FM80/61W-VZDN520 R902245056 AA2FM90/61W-PUDN027-S R902137848 AA2FM90/61W-VBD520 R902138067 AA2FM90/61W-VBDN520-S R902138136 AA2FM90/61W-VBDN527-S R902222231 AA2FM90/61W-VQDN188-Y R902197932 AA2FM90/61W-VQDN510 |
|
R902137561 AA2FM90/61W-VQDN510 R902138478 AA2FM90/61W-VQDN510 R902138082 AA2FM90/61W-VQDN510-S R902194376 AA2FM90/61W-VQDN510D R902137702 AA2FM90/61W-VQDN520 R902163992 AA2FM90/61W-VQDN520 R902137510 AA2FM90/61W-VQDN520 R902137511 AA2FM90/61W-VQDN520 R902193327 AA2FM90/61W-VQDN520D R902182187 AA2FM90/61W-VQDN527-S R902249636 AA2FM90/61W-VQDN527-Y R902226433 AA2FM90/61W-VQDN527D R902198208 AA2FM90/61W-VQDN527J R902249707 AA2FM90/61W-VQDN691 R902205808 AA2FM90/61W-VSD188 R902193401 AA2FM90/61W-VSD510 R902137774 AA2FM90/61W-VSD510 R902160879 AA2FM90/61W-VSD510 R902137773 AA2FM90/61W-VSD510 R902161426 AA2FM90/61W-VSD520 R902137776 AA2FM90/61W-VSD520 R902193160 AA2FM90/61W-VSD520 |
R902161228 AA2FM90/61W-VSD520 R902211758 AA2FM90/61W-VSD520 R902138466 AA2FM90/61W-VSD520 R902253731 AA2FM90/61W-VUDN010-S R902245049 AA2FM90/61W-VUDN020-S R902220634 AA2FM90/61W-VUDN027-S R902155548 AA2FM90/61W-VUDN027-S R902137575 AA2FM90/61W-VUDN027-S R992001726 AA2FM90/61W-VUDN027-S R902161343 AA2FM90/61W-VUDN027F-S R902161286 AA2FM90/61W-VUDN027F-S R902138062 AA2FM90/61W-VUDN027F-S R902155951 AA2FM90/61W-VUDN027F-S R902251643 AA2FM90/61W-VUDN027U-S R902193033 AA2FM90/61W-VUDN027U-S R902271421 AA2FM90/61W-VUDN027U-S R902160011 AA2FM90/61W-VUDN029U-S R902117965 AA2FM90/61W-VUDN106F-S R902207329 AA2FM90/61W-VUDN510 R902138089 AA2FM90/61W-VUDN520 R902245279 AA2FM90/61W-VUDN520H-S R902028673 AA2FM90/61W-VUDN526-Y |
R902138114 AA2FM90/61W-VUDN527 R902137995 AA2FM90/61W-VUX027 R902151575 AA2FM90/61W-VUX027 R902160000 AA2FM90/61W-VUX027-S R902561799 ALAA2F M 250 /60R-VSD520F -SO131 R902483574 ALAA2F M 250 /60W-VSD510 R902412280 ALAA2F M 250 /60W-VSD520 R902438156 ALAA2FLM 250 /60W-VXB010D -SO104 R902439429 ALAA2FLM 250 /60W-VXB020 -SO106 R902555906 ALAA2FLM 250 /60W-VXB020D -SO137 R902435490 ALAA2FLM 355 /60W-V H100D -SO 82 R902428827 ALAA2FLM 500 /60W-VXH010D -SO 59 |
